Why Can Trains Run Smoothly?The Guardianship of Shock-absorbing Springs

When the Fuxing bullet train races at 350 kilometers per hour, the miracle that the water in a passenger’s cup ripples no more than 2 millimeters reveals the extraordinary wisdom of rail transportation tools in defying the laws of physics. In this precisely operating mobile system, shock-absorbing springs act as a safety manager well-versed in the art of vibration control, using the elasticity of metal to embody the engineering philosophy of combining rigidity and flexibility.

I. The Triple Challenges of Vibration

The vibrations generated by train operation have complex dynamic characteristics: longitudinal start-stop impacts can reach an instantaneous acceleration of 5g, lateral centrifugal forces during curve passage can produce a lateral load of 800-1500N, and vertical track joint impacts can cause high-frequency vibrations at 15-25Hz. If these multi-dimensional mechanical shocks are not handled, they will not only cause uncomfortable shaking of the carriages but also lead to safety hazards such as metal fatigue and bearing wear.

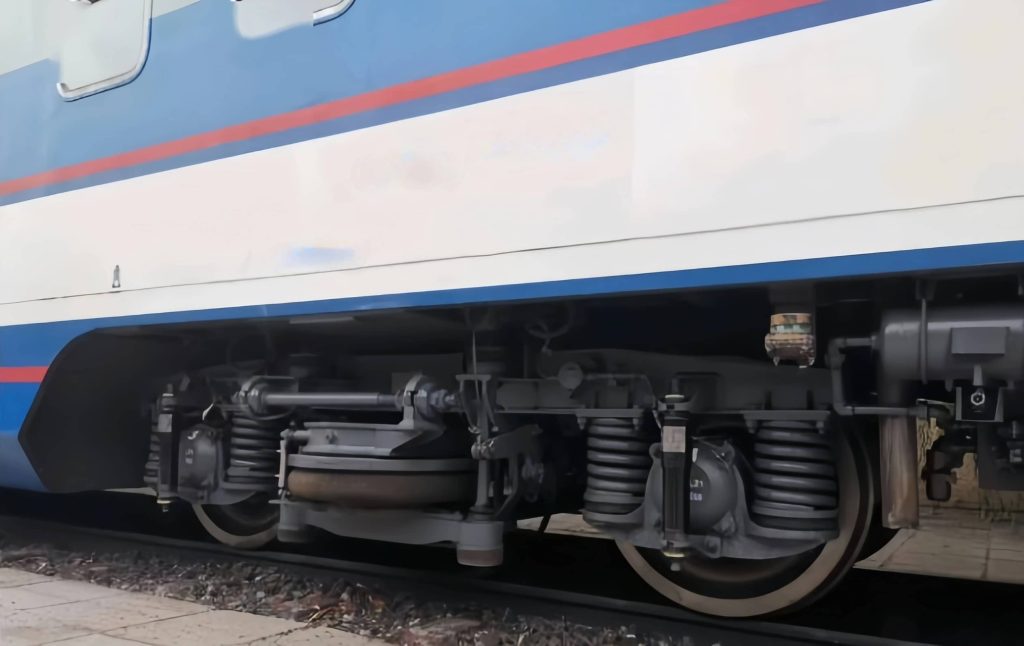

II. The Structure of Spring Systems

Modern shock-absorbing springs adopt a “rigid-flexible coupling” composite design system:
1. Conical helical springs serve as the main components. Their variable pitch structure causes the stiffness to increase nonlinearly with compression, providing flexible buffering (elastic coefficient 120-150N/mm) when unloaded and converting to rigid support (elastic coefficient 300-350N/mm) when heavily loaded. This intelligent gradient characteristic enables the train to handle sudden pressure changes when passing through tunnels or sudden braking with ease.
2. Rubber-metal laminated components act as secondary shock-absorbing units, specifically filtering out high-frequency vibrations above 30Hz. Their viscoelastic materials can convert 70% of the high-frequency mechanical energy into heat energy through molecular chain shear deformation.
3. The innovative application of hydraulic dampers, by adjusting the valve opening to control the oil flow rate, achieves dynamic damping adjustment at a frequency of 300 times per second. Laboratory data shows that this “hydraulic spring” system can suppress the resonance amplitude to less than 18% of the original value.

III. The Evolutionary Revolution of Material

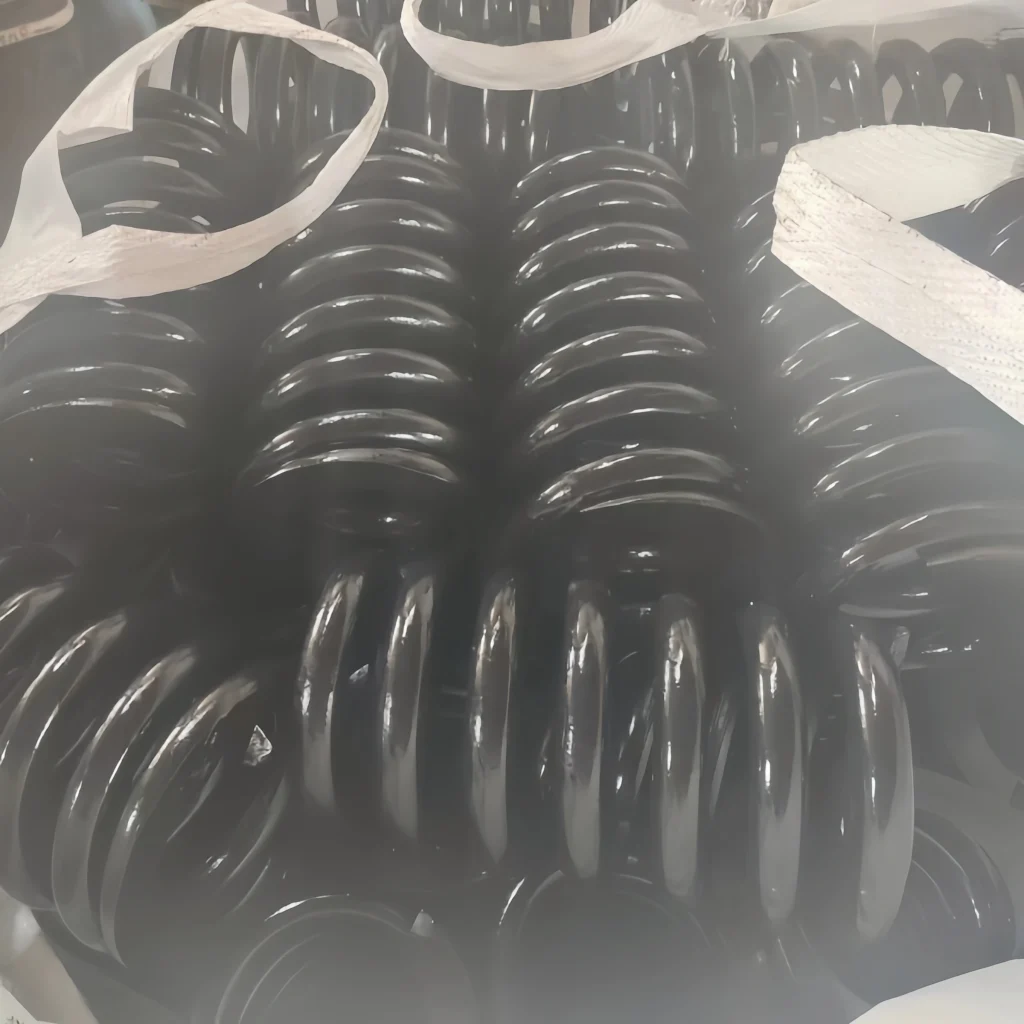

The new chromium-silicon alloy steel used in high-speed rail shock-absorbing springs, through nanoscale carbide dispersion strengthening technology, can maintain over 90% of its initial stiffness after 200 million load cycles. The 50μm hardened layer formed by plasma nitriding on the material surface increases the corrosion resistance in humid and salt spray environments by six times. Even more ingenious is the introduction of memory alloy components, which automatically expand the spring pitch by 5% when the temperature exceeds 80°C, creating additional buffer space.

IV. Intelligent Sensing System

The latest generation of shock-absorbing systems is equipped with MEMS sensor arrays that can collect vibration spectra at a frequency of 2000 times per second. When a specific frequency resonance trend is detected, the control system activates the anti-phase actuator within 50 milliseconds to counteract the vibration by applying a reverse force. In the actual measurement on the Beijing-Zhangjiakou high-speed railway, this intelligent system successfully reduced the impact of air pressure fluctuations when passing through the Juyongguan Tunnel by 82%.

V. Full-Scenario Adaptation Technology

Shock-absorbing springs demonstrate astonishing adaptability to different operating environments:
• High-cold lines: Spring groups equipped with electric heating de-icing devices can maintain optimal elasticity in -40°C environments.
• Cross-sea bridges: Spring units with fluorocarbon coating protection have an anti-salt spray corrosion life of 15 years.
• Heavy freight: Multi-stage parallel spring structures can stably support an axle load of 300 tons.
• Urban tracks: Magnetorheological dampers reduce the longitudinal impulse when entering and exiting stations to 0.15m/s³.
From the cast iron era to the intelligent era, the evolution of shock-absorbing springs is a history of human efforts to tame mechanical vibrations. The most advanced active electromagnetic suspension system can predict track irregularities 0.5 seconds in advance through real-time calculations and generate corresponding shock-absorbing strategies. When we marvel at the modern train’s running quality, which is as still as a maiden at rest and as swift as a hare in motion, let’s not forget that within the small space where the wheels meet the tracks, those spring components that undergo millions of elastic deformations continuously are accumulating microscopic deformations to create the macroscopic
