Gearbox: The solid foundation of the rail transit power system

In modern rail transit vehicles such as high-speed rail and urban rail, the rail gear box plays a vital role as the core load-bearing component of the power transmission system. It not only provides precise positioning and reliable support for gear transmission but also withstands various complex stresses during operation. High-quality gearboxes can ensure the stable operation of the power transmission system, which directly affects the safety, reliability and service life of the train.

Basic structure and function of the gearbox

The gearbox is a complex mechanical structure, usually composed of a housing, a bearing seat, a mounting flange and other parts. Its main functions include:

In high-speed rail and urban rail vehicles, the gearbox needs to meet strict dimensional accuracy and form and position tolerance requirements. For example, the coaxiality of the bearing seat is usually required to be controlled within 0.02mm to ensure the smoothness of the gear transmission.

Working environment and performance requirements of gearbox

Rail gear box works in extremely harsh environments and needs to meet the following performance requirements:

1. High strength: able to withstand torque up to 20000N•m and severe impact loads

2. High rigidity: deformation does not exceed 0.1mm under maximum load

3. Good vibration reduction performance: reduce vibration and noise generated by gear transmission

4. Excellent sealing: prevent lubricating oil leakage and external pollutants from entering

5. Good heat dissipation performance: effectively dissipates heat generated by gear transmission

During the operation of high-speed trains, the surface temperature of the gearbox may reach above 120℃, and it must also withstand vibration and impact from the track. These harsh working conditions place incredibly high demands on the design and manufacture of the gearbox.

Material selection and manufacturing process of gearbox

Gearboxes are usually made of high-strength cast iron or cast steel. The selection of materials needs to consider factors such as strength, rigidity, vibration reduction and processability. Commonly used materials include:

1. Ductile iron: has good strength and vibration reduction performance

2. Alloy cast iron: has higher strength and wear resistance

3. Cast steel: suitable for occasions with greater loads

The manufacturing process of the gearbox mainly includes casting, heat treatment and machining. Advanced casting processes such as resin sand casting and lost foam casting can ensure the dimensional accuracy and internal quality of the box. Heat treatment processes such as annealing and aging can eliminate casting stress and improve the mechanical properties of the material.

In the machining process, high-precision CNC machine tools are required to ensure the dimensional accuracy and form and position tolerance of key parts. For example, the machining accuracy of the bearing seat is usually necessary to reach the IT6 level, and the surface roughness Ra≤1.6μm.

Structural design and optimization of gearbox

The design of a modern gearbox adopts advanced CAE technology, optimizes the structure through finite element analysis, and achieves lightweight while ensuring strength. Typical design optimization measures include:

1. Use rib structure to improve rigidity

2. Optimize wall thickness distribution to achieve lightweight

3. Design a reasonable lubricating oil channel

4. Optimize installation interface design

5. Use modular design for easy maintenance

Through structural optimization, the weight of the new generation gearbox can be reduced by 15%-20%, while the rigidity is increased by more than 10%. This not only reduces material costs but also reduces the energy consumption of train operations.

Quality control and inspection of gearbox

To ensure the quality of the gearbox, strict quality control measures need to be implemented. The main quality inspection items include:

1. Material chemical composition analysis

2. Mechanical property test

3. Dimensional accuracy test

4. Non-destructive testing (ultrasonic, magnetic powder, etc.)

5. Sealing test

6. Vibration characteristic test

The application of advanced testing equipment, such as a three-coordinate measuring machine, ultrasonic flaw detector, etc., ensures the quality and reliability of the gearbox. For example, the use of industrial CT scanning technology can detect tiny defects inside the box with an inspection accuracy of up to 0.02mm.

Gearbox maintenance and care

Gearbox maintenance is essential to ensure its long-term reliable operation. The main maintenance work includes:

1. Regularly check whether there are cracks or deformations on the surface of the box

2. Check the status of the seals and replace aging seals in time

3. Clean the lubrication oil circuit to ensure smooth lubrication

4. Check the tightness of the mounting bolts

5. Monitor the vibration of the box and detect abnormalities in time

The service life of the gearbox can be significantly extended by implementing preventive maintenance strategies. For example, regular replacement of seals can prevent lubricating oil leakage and avoid gear wear caused by poor lubrication.

Technical development trends of gearboxes

With the advancement of rail transit technology, gearbox technology is also constantly developing. The main development trends include:

1. Lightweight: use new materials and optimize structural design

2. Intelligence: integrated sensors to achieve condition monitoring

3. Modularity: simplify maintenance and replacement

4. Environmental protection: use recyclable materials and environmentally friendly processes

5. High reliability: improve service life and reliability

For example, gearboxes made of carbon fiber-reinforced composite materials can reduce weight by more than 30% and have better vibration reduction performance. Intelligent gearboxes with integrated vibration and temperature sensors can realize real-time status monitoring and improve maintenance efficiency.

The role of gearboxes in energy conservation and emission reduction

As an important component of rail transit vehicles, gearboxes play an important role in energy conservation and emission reduction. Through lightweight design, the energy consumption of train operation can be significantly reduced. For example, reducing the weight of the gearbox by 100kg can reduce energy consumption by about 5000kWh per year.

In addition, optimizing the heat dissipation design of the gearbox can reduce the consumption of lubricating oil and extend the oil change cycle. Gearboxes made of environmentally friendly materials and processes can reduce carbon emissions by more than 30% throughout their life cycle.

The safety performance of gearboxes

The safety performance of gearboxes is directly related to the operational safety of rail transit systems. The main safety design considerations include:

1. Sufficient strength reserve to cope with unexpected loads

2. Reliable sealing design to prevent lubricant leakage

3. Reasonable stress distribution to avoid stress concentration

4. Good fatigue resistance to ensure long-term safety

5. Failure safety design to prevent fault diffusion

For example, using finite element analysis to optimize stress distribution can reduce the stress concentration factor by more than 30%, significantly improving the fatigue resistance of the gearbox.

Standardization and modularization of gearbox

In order to improve production efficiency and reduce maintenance costs, the standardization and modularization of gearboxes have become an industry trend. Through standardized design, gearboxes of different models of trains can share common components, significantly reducing spare parts inventory and maintenance difficulties.

Modular design makes the assembly and maintenance of gearboxes more convenient. For example, a gearbox with a modular design can replace a faulty module without disassembling the entire transmission system, significantly shortening maintenance time.

Future development direction of gearbox

Looking to the future, gearbox technology will continue to develop in the direction of high efficiency, intelligence and environmental protection. The application of new materials and new processes will further improve the performance and service life of gearboxes. The in-depth application of intelligent technology will enable the gearbox to have stronger self-diagnosis and self-adaptation capabilities.

In terms of environmental protection, the development of more energy-saving and environmentally friendly gearboxes will become a key research direction. For example, research on oil-free lubrication technology and the development of biodegradable lubricating materials. These innovations will promote the development of gearbox technology in a more sustainable direction.

In today’s rapid development of rail transit, gearboxes as core components will continue to play an important role. Through continuous technological innovation and process improvement, gearboxes will provide more reliable guarantees for the safe, efficient and environmentally friendly operation of rail transit. In the future, with the application of new materials and new technologies, the performance of gearboxes will be further improved, making greater contributions to the development of rail transit.

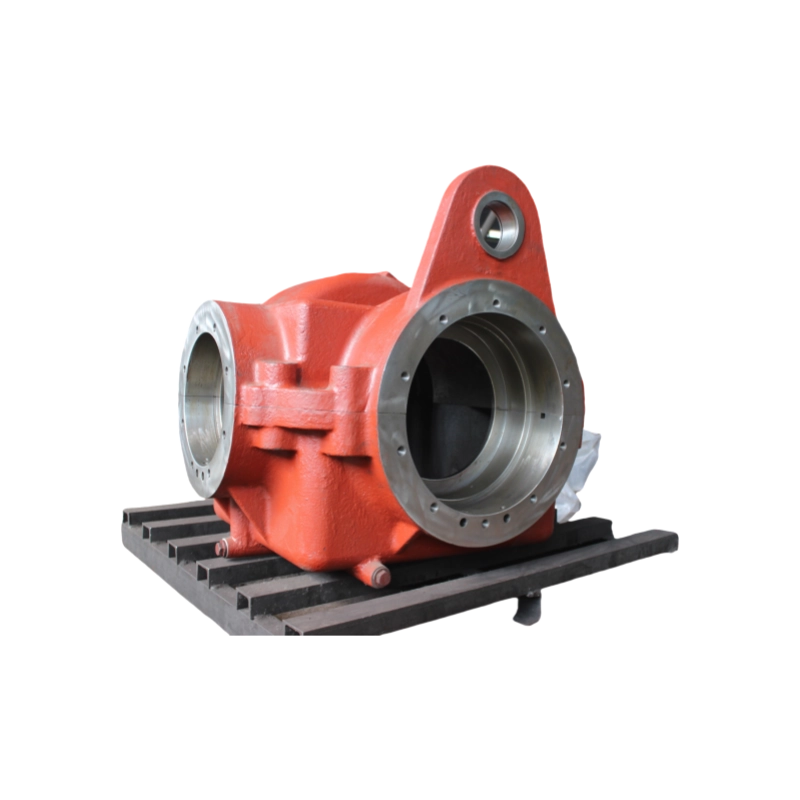

Introduction to our gearbox casting products

As a professional casting manufacturer, our company is committed to providing customers with high-quality gearbox casting products. Our gearbox castings are made of advanced casting technology and high-quality materials, with the characteristics of high strength, high wear resistance and high corrosion resistance. These castings not only meet the performance requirements of various rail vehicle gearboxes at home and abroad but also undergo strict testing and quality control to ensure their quality and reliability.
